Catsu Hydraulic Tiltrotator : Product

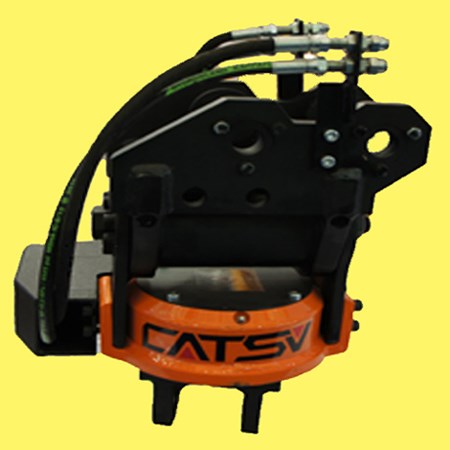

Catsu CT02 Tilt Rotator suits all excavators in the weight class 1.5 - 3 tonnes. The model comes complete with tubes, hydraulic couplings and electrical installation equipment for one machine. The standard mounting is S30 & S40, but the tiltrotator can also be ordered with direct coupling to the machine stick, and we have a broad database of existing models on the market. STRATEGIC MEASUREMENTS * Width A: (mm) 180 Width B: (mm) 155 Width C: (mm) 160 Total length D: (mm) 435 Build height E: (mm) 245 Weight: (kg) From 35 Tilt: 2x40/TD Flow requirement: l/min 15.5 Work pressure: (Mpa) 18.1 Max. return pressure: (MPa) - Standard mountings: S30, S40 TECHNICAL INFORMATION * Machine weight: (tonnes) 1.5 - 3 Rotation: Infinite Oil flow: (l/m) 15.5 Rotation at 50 l/m: (rpm) - Rotation torque: (kNm) - Breakout force max.: (kNm) - Swivel, extra: - Double swivel: - Oil flow max.: (l/m) - Extra hydraulic coupling, hitch: -
