  • Used GORBREX - TKV 512 Lathe Machine for Sale
  • Used GORBREX - TKV 512 Lathe Machine for Sale

Used GORBREX - TKV 512 Lathe Machine for Sale : Product

  • Make:GORBREX
  • Model:TKV 512
  • Price:P.R.O
  • Exportable:No

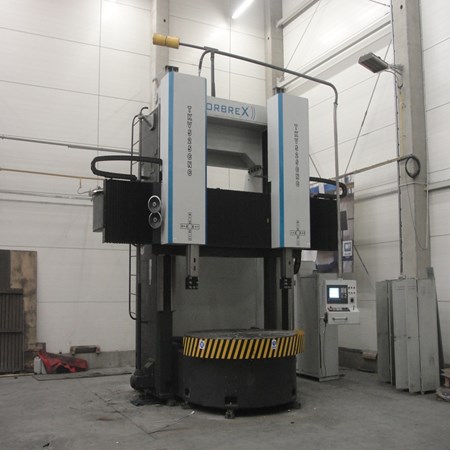

We would like to sell used GORBREX TKV 512 Lathe Machine. This Lathe machine is fully modernized and modified of SEDIN 1512. Machine with new electrical unit, new lubrication unit, painted, slideways Regrinded, replacement of worn mechanical parts. Machine will be equipped with new CNC control SIEMENS SINUMERIK 828. Detailed specifications are mentioned below, Make: GORBREX Model: TKV 512 Year: 2015 CNC Control: SIEMENS SINUMERIK 828 Number of columns: 1 Number of carriages: 1 Type of carriages: Rotary head in 5 positions or ram Number of axes controlled: X/Z Turning diameter: 1250 mm Table diameter: 1120 mm Max. Turning Height: 1000 mm Max.weight of workpiece: 3200 kg Table speeds: 5-250 rpm Number of table speeds ranges stepless: 3 Rotary head: 700 mm Ram: 1000 mm Horizontal travel in Z axis: 775 mm Range of working feeds: 2-2000 mm/min Rapid feeds in axis X/Z: 10 m/min Knife cross-section: 25 x 25 mm Vertical travel of crossbeam: 640 mm Speed travel of crossbeam: 360 mm/min Main motor power: 30 kW Installed power: 37 kW Positioning accuracy: 0.01/1000 mm Overall dimensions: 2750 x 2975 x 4100 mm Machine weight: 16 T Interested buyers, please contact us to get more info about used GORBREX TKV 512 Lathe Machine.
