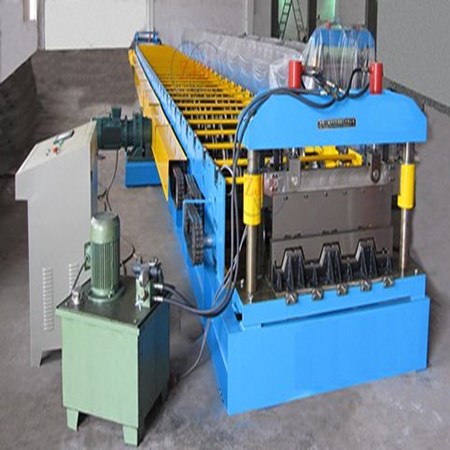

Floor deck forming machine : Product

Type Tile Forming Machine Tile Type Colored Glaze Steel Use Floor color blue certification CE,ISO9001 Detailed Product Description: 1.rollforming,roll former 2.Offer Roll Forming machine 18+ years experience, Contact now! 3.CE,ISO9001,we are the best Floor Deck Roll Forming Machine Steel structural floor panel is the type of steel construction material with character of low light, hard, easy to install, which extensively apply in constructing skyscraper, residential building and bridge. Zhongji series steel structural floor panel with the feature of reliable, convenient operation, automatic can be used in various steel structural floor panels forming. Producing Process Sketch: Technological Process: Uncoiling---Feeding---Leveling---Punching---Rool Forming---Cutting---Products Collecting Main Technical Specifications of Floor Deck Roll Forming Machine: Number Items Unit\Type RF-FD 1 Steel Thickness mm 0.8-1.2 2 Steel feeding width mm 1000-1250 3 Forming Speed m/min 10-15 4 Roller stands stand 30-36 5 Roller Material 45# steel, coated with chrome 6 Hydraulic cutting Power Kw 18 7 Hydraulic pressure Kw 5 8 Hydraulic pressure Mpa Mpa 12 9 Power Supply 380V, 50HZ,3 phase 10 Tolerance mm 1.5 11 Material of cutting Cr12 12 Control system PLC with touch screen 13 Machine net weight T 16
