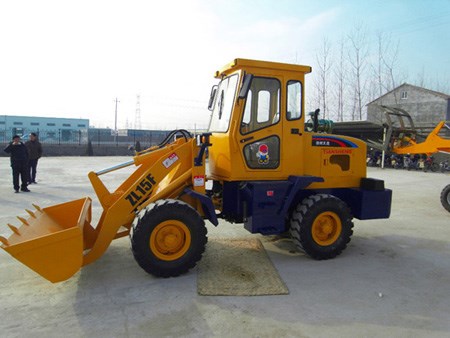

wheel loader : Product

Rate loading weight kg 1200 Rated bucket capacity m3 0.25 Unload height mm 2400 Max climb ability 21% up time (S) 6 Travel speed Low speed shift (km/h) 5 Low speed shift (km/h) 20 Min turning radius (m) 4.5 Overall dimension (length X width X high) mm 4520x1600x2400 Bucket width mm 1000 tread mm 2060 Wheelbase mm 1400 Minimum ground clearance mm 200 The weight of machine kg 2200 Engine Model 385 Rate power kw 18.4 Rated speed r/min 2350 Start-up mode 12V DC Motor Drive Second, the work of installation of hydraulic system pump Model CB-Fc40 Rated pressure Mpa 16 Multi-way valve Model 34DLS-E10L Rated pressure Mpa 25 Max flow ( L/MIN) 80 Priority valve Model YXL-F160L-N
