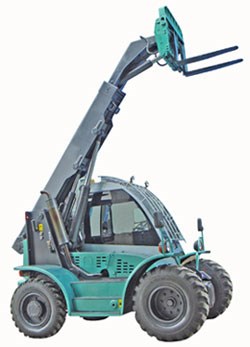

The Telescopic handlers (JF25-4) : Product

The Telescopic handlers (JF25-4) for almost any task that involves lifting, moving or placing objects or materials. It works with Four-Wheel Drive, hydromechanical transmission, hydraulic Power Steering, Hydraulic brake, and Rear-Wheel Steering. The handling equipment is Telescopic boom, standard model installs moving fork. Besides smooth joystick controls and a wide range of attachments, we also can offer the right machine meet your specific requirements. Shovel loader, derrick boom and hook for selecting to install Item Unit Parameter Max lifting capacity kg 2500 Capacity @ Max Reach kg 1000 Max forward reach mm 3000 Reach @ Max height mm 1000 Max lifting height mm 6000 Lift speed @ payload m/s 0.35 Flex speed m/s 13 Max Travel Speed km/h 28 Min Height of Forks mm 310 Min turning diameter mm 12500 Gradeability % 20 Operating Weight kg 7100 Overall Size( Length×Width×Height) mm 5560×2300×2580 Engine (CUMMINS) Model 4BT3.9-C80 Rated power kw 60 Rated speed r/min 2000 Peak Torque 330N.m/1500r/min Displacement L 3.9 Cylinders 4 Compression Ratio 17.5:1 Tire Front 16/70-20 Rear 8.25-20-14
