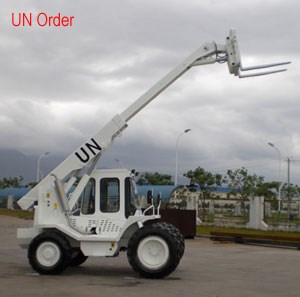

The Telescopic handlers (JF35-4) : Product

The Telescopic handlers (JF35-4) for almost any task that involves lifting, moving or placing objects or materials. It works with Four-Wheel Drive, hydromechanical transmission, hydraulic Power Steering, Hydraulic brake, and Rear-Wheel Steering. The handling equipment is Telescopic boom, standard model installs moving fork. Besides smooth joystick controls and a wide range of attachments, we also can offer the right machine meet your specific requirements. Shovel loader, derrick boom and hook for selecting to install Overall Size Mark Item JF35-4 A Height 2650 B Width 2300 C Length 6060 D Cab width 740 E Track 1900 F Wheel base 2520 Item Unit Parameter Max lifting capacity kg 3500 Capacity @ Max Reach kg 1000 Max forward reach mm 3260 Reach @ Max height mm 1000 Max lifting height mm 6000 Lift speed @ payload m/s 0.35 Flex speed m/s 13 Max Travel Speed km/h 30 Min Height of Forks mm 350 Min turning diameter mm 15500 Gradeability % 20 Operating Weight kg 8000 Engine (CUMMINS) Model 4BT3.9-C80 Rated power kw 60 Rated speed r/min 2000 Peak Torque 330N.m/1500r/min Displacement L 3.9 Cylinders 4 Compression Ratio 17.5:1 Tire Front 16/70-20 Rear 8.25-20-14
