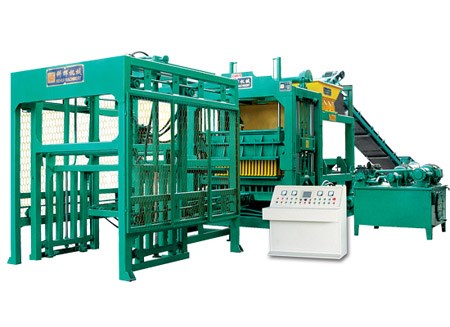

QT12-15 Automatic Concrete Block Making Machine : Product

QT12-15 All of our machines are adopt to the import PLC programming control system, man-machine interface, and electric hydraulic pressure components, which make sure that the control system can be operated much more convenient. The frame of the machine is made of high-strength steel with special welding technology. And the steering column is also made of special steel, with chrome plate surface, which can be very resistant and wearable. The vibration system is adapted to sensing and drive technology, and the materials can be drag in with compulsory. It allows the raw materials to be well mixed, so that any error of the products can be hardly seen. At the same time, the vibrating table and box are joined together, which allows little noise and low rate malfunction. QT 12-15 Production Capacity: 390*190*190mm block size, 12 piece per cycle 13824-17280 Piece per 8 workign hours. 240*115*90mm block size, 30 piece per cycle 43200-57600 Piece per 8 workign hours. 200*100*80mm block size, 35 piece per cycle 50400-67200 Piece per 8 workign hours. 240*115*53mm block size, 60 piece per cycle 86400-115200 Piece per 8 workign hours. Cycle Time : 15-25 Second Pallet Size: 1350*860mm Power:54KW Vibrating Force:220KN Vibrating Frequency 50-90Hz Control Mode: Controlled by computer automatically Dimensions:3640*2120*3000mm Weight:15000KG
