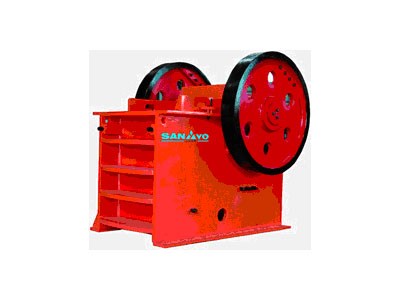

High crushing ratio jaw crusher : Product

1. SANYYO Jaw crusher features: 1, Firm structure and high reliability;2. Large crushing ratio and large range of capacity available 3, Wedge setting adjustment, to can get different size products 4, The broken cavity is "V"-shaped structure without dead zone, productive and efficient, 5, Lubrication system is safe and reliable, convenient to maintenance;6, Can be used in stationary or semi-mobile installations; 2. Product introduction Jaw crusher are suitable for crushing hard, medium hard and soft materials with compressive strength less than 320Mpa and size between 125mm~750mm. It is mainly applied to the course and medium crushing with large range of discharged products between 10 to 300mm.SANYYO Jaw crusher can be divided into two kinds: PE series and PEX series (coarse and fine crushing).  Jaw Crusher features large reduction ratio, even granularity and cubical shaped products, simple structure, reliable operation, convenient maintenance, and low cost, widely used in mining, metallurgy, construction, highway, railroad, conservancy and chemistry industries, etc. 3. Work principle of fine jaw crusher The motor transmits power through belt, thus drives the moving jaw do periodic motion to the fixed jaw surround the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw. The stuff will be crushed in this process. The angle of Jaw Crusher between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw of Jaw Crusher moves away from fixed jaw by the pulling of rod and spring, the products after crushing will be discharged from the outlet of Jaw Crusher. Model Size of feed (mmxmm) Max.feed size(mm) Capacity (t/h) discharge opening(mm) power (kw) Weight (t) Overall dimensions (mm) PE-250x400 250x400 210 5-20 20-60 15 2.8 1450x1315x1296 PE-400x600 400x600 340 16-65 40-100 30 6.5 1565x1732x1586 PE-500x750 500x750 425 45-100 50-100 55 10.1 2365x1911x2062 PE-600x900 600x900 500 50-120 65-160 55-75 15.5 2536x1877x2340 PE-750x1060 750x1060 630 52-180 80-140 110 28 2450x2410x2860 PE-800x1060 800x1060 650 85-143 100-200 110 30 2660x2556x2800 PE-870x1060 870x1060 670 181-210 200-260 110 30.5 2733x2556x2800 PE-900x1200 900x1200 750 140-360 95-165 110 50 3558x2875x3268 PE-1000x1200 1000x1200 850 160-420 195-265 110 51 3558x2875x3268 PE-1200x1500 1200x1500 1020 400-800 150-300 180 100.9 4200x3732x3843 PEX-250x750 250x750 210 8-22 25-60 22 4.9 1545x1667x1330 PEX-250x1000 250x1000 210 16-52 25-60 30-37 6.5 1530x1992x1380 PEX-250x1200 250x1200 210 20-60 25-60 37 7.7 1750x2192x1430 PEX-300x1300 300x1300 250 20-90 20-90 55 11 1900x2320x1724
