Die Spotting Machine : Product

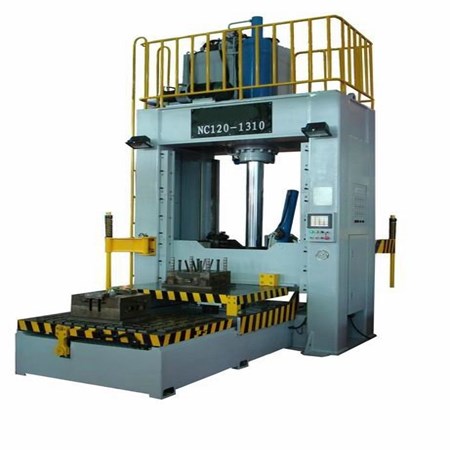

Die Spotting Machine Features: 1. Base adopts welding structure and make deformation degree lower after heat treatment. 2. Upper and lower platen workbenches and guide rails all adopt nodular cast iron, with advantages of good planeness, high precision and small deformation. 3. Disk type adopts permanent-electro magnetic chuck, with advantages of keeping magnetic when power outage，using without power supply，magnetic force in strong， both safety and power saving 4. Safety facilities are complete. 5. Hydraulic system adopts vibration-absorption devices, can reduce hydraulic impact and ensure equipment precision. 6. Hydraulic system is equipped with low-pressure protection devices and prevents damages caused by collision and insertion. 7. The system can adopt impact produced by high-speed compound mold and make red lead excellent effects Parameter table of vertical die spotting machine model NC30 NC50 NC70 NC100 NC120 NC150 NC200 NC300 NC400 Max Spotting Force（T） 30 50 70 100 120 150 200 300 400 Max Lifting Force（T） 12 20 20 45 45 60 80 80 90 Die Opening Space（mm） 1000 1100 1100 1300 1300 1400 1800 2100 2600 Size of Working Bench（mm） 800*600 1000*700 1000*700 1300*1000 1300*1000 1500*1100 1800*1300 2500*1800 3000*2000 Bearing Capacity of Upper Working Bench（T） 0.5 1 1 3 3 5 8 12 25 Bearing Capacity of Lower Working Bench（T） 2 3 3 8 8 12 20 40 60 Suction Force of Upper Magnetic Disk（T） 20 25 25 55 55 70 125 245 345 Suction Force of Lower Magnetic Disk（T） 15 20 20 40 40 55 80 80 90 Out Stroke of Lower Working Bench（mm） 1400 1600 1600 2200 2200 2400 2800 4000 4400 Motor power（KW） 4.0 5.5 5.5 7.5 7.5 11 15 22 37
